Automatic Filter Press

Features

・"Double Top Corner Feed" allows for uniform cake formation and drier
　cakes and thorough cake washing
・Easy to change filter cloth and diaphragm sheet (replaceable type)
・Low maintenance and reliable air-driven cake scrapers
・Our Filter Press is designed with chemical resistant.

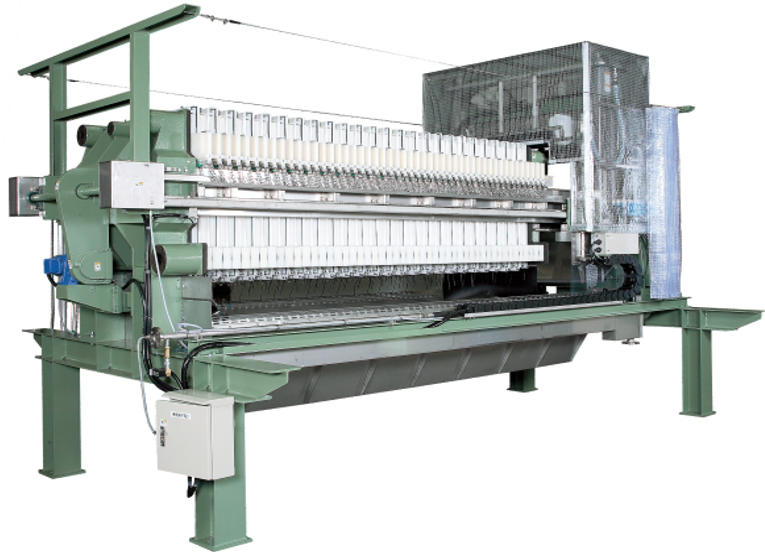

・Gatepost type scraper has lower height and specializes in preventing
　contamination compared to standard type.
・Easy operation with touch panel can accomplish labor saving in
　manufacturing process.

---

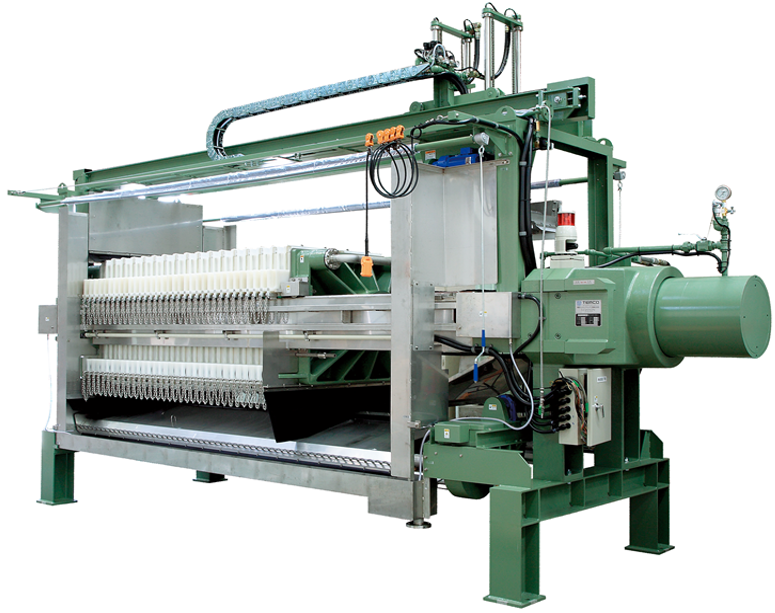

Construction

Filter plates are securely closed by a hydraulic cylinder, while the drip tray remains open to allow for cake discharge. In the cake removal process, the hydraulic cylinder opens the filter plates, the drip tray closes, and the scraper device automatically removes filter cakes, dropping it under the drip tray. All operations are fully automated, ensuring efficient, hands-free operation and consistent performance.

---

Standard Specification

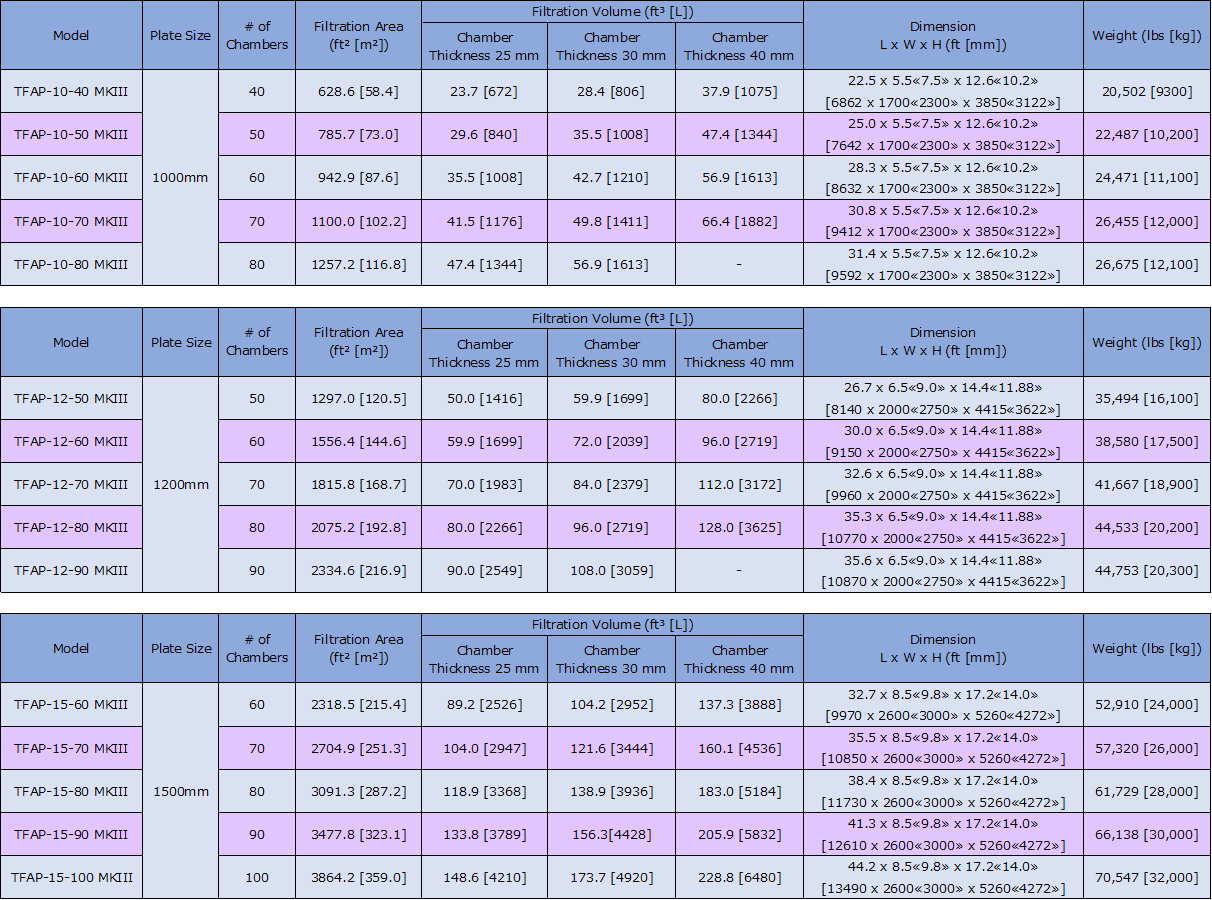

The table below outlines the model types, technical specifications, overall dimensions, and weight of our fully automatic filter press

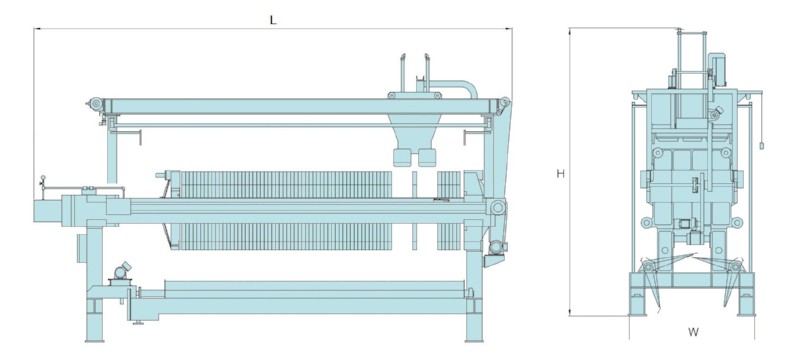

These dimension/weights are based on 40mm thickness chamber.

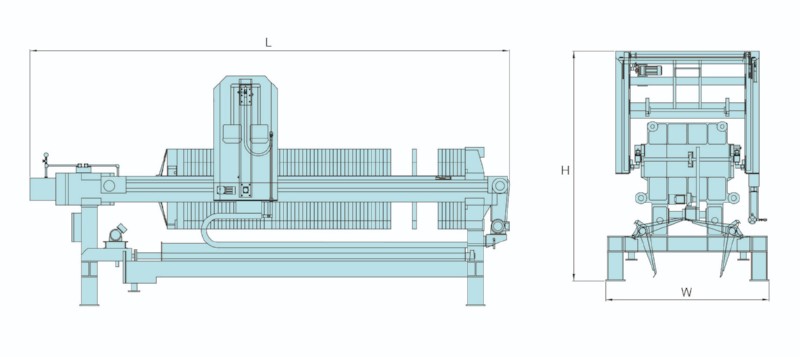

≪≫Dimensions/weights are based on gatetype scraper type of 40mm thickness chamber.

---

Whole Layout

To ensure smooth and fully automated operation of the filter press, the following auxiliary equipment is required:
・Control Panel: Enables automatic operation, flexible configuration and system monitoring.
・Hydraulic Pump Unit: Operate hydraulic cylinder that opens and closes the filter plates.
・Slurry Pump and Slurry Tank: Supplies slurry to the filter press during the filtration process.
・Filter Cloth Wash Pump and Tank: clean the filter cloths and maintain filtration efficiency.
・Cake Washing pump: If cake washing is required, an additional washing water tank and pump are installed.
・Compressor and Air Tank: Since the filter press consumes compressed air, a compressor and air receiver tank are necessary components.
・Cake Discharge Handling: The discharged filter cake can be collected in a container placed beneath the filter press or transported to the next
　　　　　　　　　　　　　　process via a conveyor belt.

---

Filtration Testing Services

We offer a range of filtration test to accommodate the diverse characteristics of liquids handled by our customers.
Our filtration tests provide valuable data, including:
・Processing capacity
・Moisture content of the filter cake
・Optimal filter cloth selection
We welcome customers to observe the testing process firsthand. This allows for a deeper understanding of the filtration performance and helps in selecting the most suitable equipment.
If you are interested in requesting a filtration test, please contact us here.
Let us help you determine the most effective filtration solution for your specific application.
